Deutsch HD Series 9 Pin J1939 Cable Connector with IP68 Rating for Heavy Duty Automotive Applications
Szczegóły Produktu:
| Miejsce pochodzenia: | Guangdong, Chiny |
| Nazwa handlowa: | Edgarcn & EdgarWireHarness |
| Orzecznictwo: | IATF16949 TS16949 UL |
| Numer modelu: | J1939 i J1962 |
Zapłata:
| Minimalne zamówienie: | 10000 |
|---|---|
| Cena: | $8.88-10 |
|
Szczegóły informacji |
|||
| Liczba pinów: | 9 | Typ kabla: | UL20276 28AWG |
|---|---|---|---|
| Temperatura robocza: | -40 ℃ do +125 ℃ | Odporność na wibracje: | 20 g przy 10-2000 Hz |
| Ocena IP: | IP68 | Wodoodporna głębokość: | 1,2 metra |
| Wodoodporny czas trwania: | 24 godziny | Przechowywanie kontaktów: | 20 funtów |
| Zaciskając rozciąganie: | > 20 funtów (18# Wire),> 25 funtów (16# Wire) | Typ terminalu: | 1060-16-0122 |
| Typ drutu: | UL 1007 | Seria złącza: | HD-10, HD-16 |
| Tworzywo: | Guma termoplastyczna, silikonowa | Tryb awarii: | Uszkodzenie drutu, złamane przelotki |
| Cykle termiczne: | 20 cykli (-40 ℃ ~+125 ℃) | ||
| Podkreślić: | 9 Pin Deutsch HD Series Connector,J1939 Cable Deutsch HD Series Connector,IP68 Rating Deutsch HD Series Connector |
||
opis produktu

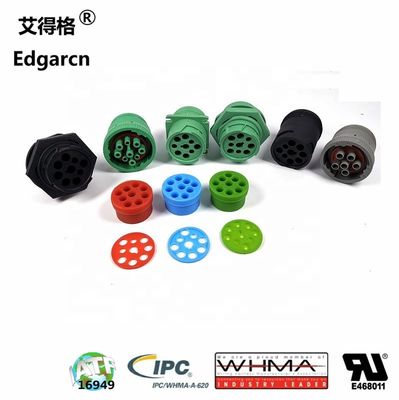

Deutsch HD Series Heavy Duty Connector HD10-9-1939P-B022 HD16-9-1939S 9 Pin Connector for J1939 Cable
Product Overview
The EDG-HD series is an environmentally sealed, thermoplastic cylindrical connector designed for heavy-duty industrial applications including trucks, buses, off-road vehicles, cranes, and forklifts. These connectors provide reliable protection against water, dust, oils, fuel, road salt, grease, and other contaminants.
Key Features

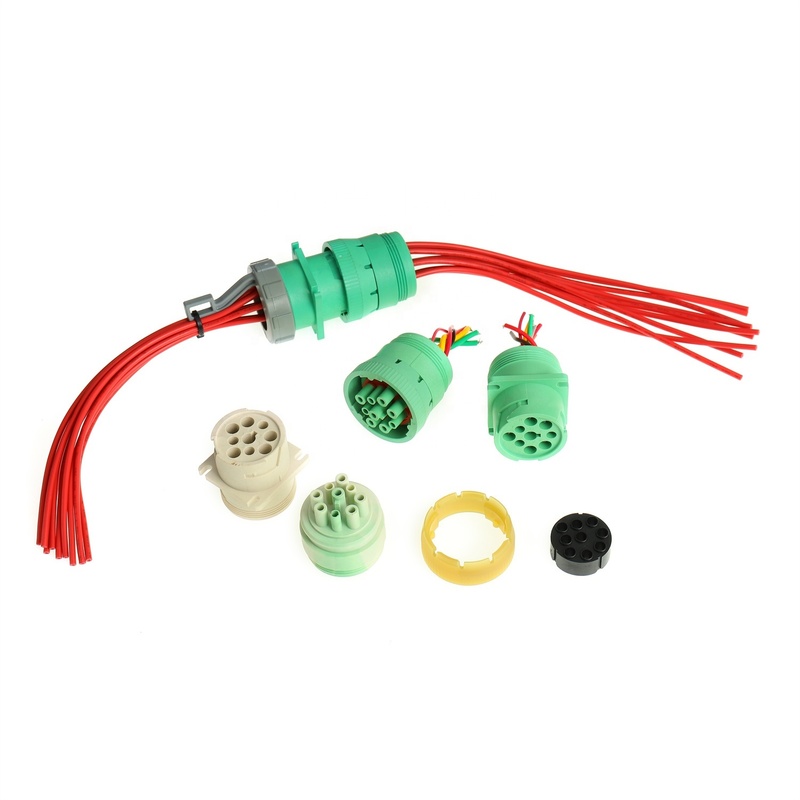

- Universal 9-pin Deutsch HD harness for trucks

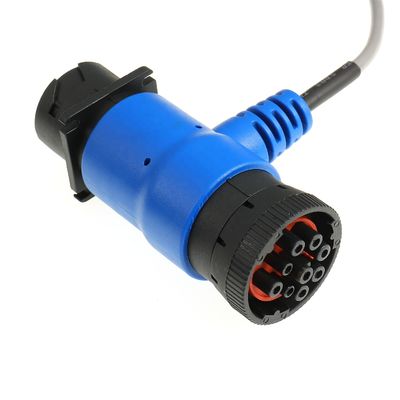

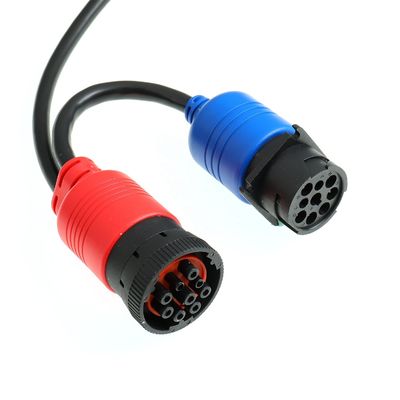

- J1939 Male to J1962 Female 6-pin Deutsch harness
- Models available: HD-16-9-1939S-P080, HD-10-9-1939P-P080, HD10-9-1939P-B022

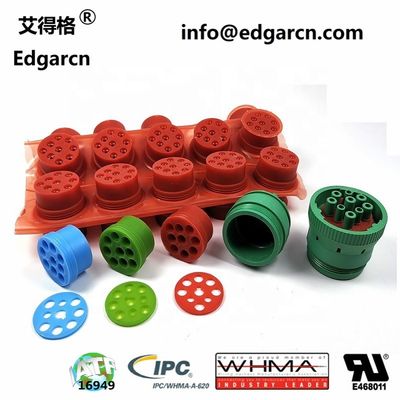

- Silicone rubber sealed for environmental protection
- Fast, easy, trouble-free assembly
Product Specifications
Environmental Performance:
- Operating temperature range: -40℃ to +125℃
- No cracking, chipping or leaking after 20 test cycles from -40℃ to +125℃
- Withstands 20 G's vibration at 10-2000Hz for 2 hours in all three planes
- IP68 rated - waterproof to 1.2 meters for 24 hours
Force Testing Results:
| Terminal Type | Wire Type | Contact Retention | Crimp Tensile | Failure Mode |
|---|---|---|---|---|
| 1060-16-0122 | UL 1007 18# | 20 LBS | >20 LBS | Wire damage |
| 1060-16-0122 | UL 1007 16# | 20 LBS | >25 LBS | Grommet broken |
Customization Options
We offer complete customization services for cable assemblies and wiring harnesses, including:
- Custom cable assemblies and wiring harnesses
- Electrical connector cable strain relief overmolding
- Customized overmolding cable assemblies
- OEM/ODM cable assembly manufacturing
- Pin configurations from 2 to 40 pins
Packaging & Delivery
| Quantity (PCS) | Lead Time (Days) |
|---|---|
| 1 - 1000 | 20 |
| 1001 - 5000 | 25 |
| >5000 | Negotiable |
| Mold/Tooling | 30+ days |
Shipping options include DHL, UPS, FedEx, TNT, ARAMEX, EMS, air or sea freight.
Frequently Asked Questions
1. Can you help with design?
Yes, we are an ODM/OEM company specializing in wire harness and cable assembly since 1999.
2. When do you start the design process?
We provide initial sketches for discussion. After order confirmation, we create detailed drawings for client approval.
3. How do you handle quality issues?
Our quality team responds within 72 hours to resolve any issues, as we prioritize long-term customer relationships.
4. Do you have standard products to reduce lead time?
Yes, we maintain over 1000 molds and 5000+ standard products that may meet your requirements.
